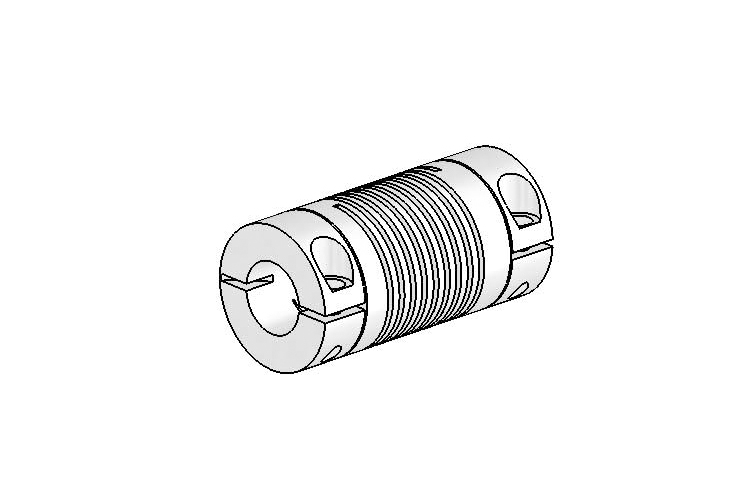

Helical UJAC125-30-12-12 Flexured U-Joint, Aluminum
Part Number: UJAC125-30-12-12
Brand: Helical Products Company
Product sold in increments specified in the ‘Quantity’ box. This number does not reflect current available inventory.
View Shopping Cart | Proceed to Checkout |
|
|
Helical Flexured U-Joint, Aluminum DescriptionThe HELICAL Flexure is an advanced and unique u-joint solution that generally exceeds the capabilities of common u-joint designs. A Helical u-joint is really a Flexure capable of over 5° angular misalignment. It may accommodate up to 90° of angular misalignment in certain circumstances. The Helical Flexured U-Joint, Aluminum will also compensate for axial and parallel misalignment. Replacement with a maintenance free Helical Flexure u-joint can save money, both on initial purchase price and on maintenance costs. Hubs and HELI-CAL FLEXURE are made from a single piece of material. Helical Flexured U-Joint, Aluminums feature no backlash and no lubrication is required. Helical has over 50 years of experience designing and producing Flexures for use in products ranging from encoders to spacecraft. Helical's many products are cost-effective and versatile. Working torque ratings are based upon continuous duty with noted misalignments applied separately and may be increased with improved alignment. Helical Flexured U-Joint, Aluminum Restricted Bores MAX Shaft Penetration A1 Type: 0.56
MAX Shaft Penetration A2 Type: 0.56
Minimum Shaft End to Shaft End: 1.38 Helical Flexured U-Joint, Aluminum Torques Momentary Dynamic: 49 lb/in.
Non-Reversing: 24 lb/in.
Shock or Reversing: 12 lb/in. Helical Flexured U-Joint, Aluminum Misalignment Angular Misalignment: Up To 30 Degrees Material InformationFinish: Natural
Material: 7075-T6 Aluminum Alloy
U-Joint Bore SizesBore Size A: .375in
Bore Size B: .375in
|
