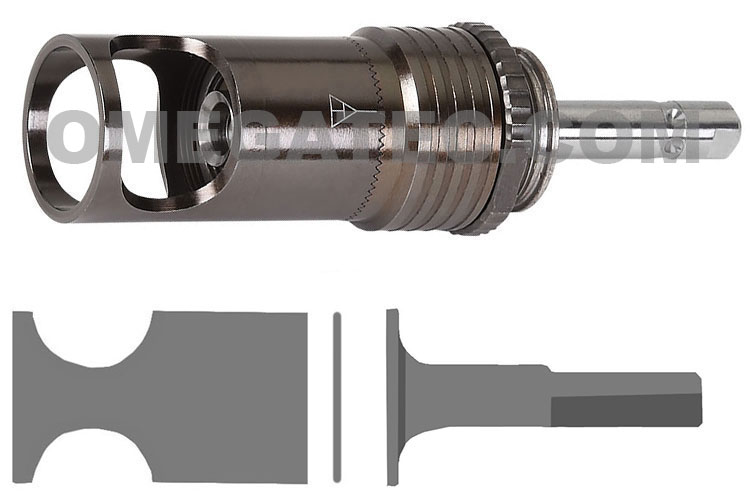

The ATI ATI444S2 Microstop Cage is an expertly crafted tool built for light to medium-duty production environments, capable of operating at speeds up to 3,000 RPM. With a bronze bushing for optimal shaft support and a heavy-duty ball thrust bearing, it ensures exceptional depth repeatability, making it ideal for precision machining.
The fail-safe design, featuring an integrated shoulder on the shaft, provides additional security, while the right-hand threaded lock nut prevents jamming in the adjustment mechanism. Durable and reliable, the ATI ATI444S2 Microstop Cage guarantees consistent, high-quality performance in demanding applications, ensuring long-term accuracy and ease of use.
The ATI ATI444S2 Microstop Cage is one of thousands of quality tooling products available from MRO Tools. Please browse ATI444 Series Microstop Countersink Cages, 1/4-28 Female Thread for tools similar to the ATI ATI444S2 Microstop Cage.ATI ATI444S2 Microstop Cage description summary: ATI ATI444S2 Microstop Cage. Depth Adjustment: .0005'' Cutter Capacity: 3/4'' Shaft Travel: 5/16'' Spindle Thread: 1/4-28 Female Max RPM: 10000 Skirt Type: Straight Shaft Shank: 3 Chuck Flats Quantity discounts may be available for the ATI ATI444S2 Microstop Cage. Please contact MRO Tools for details.
