FR-18L-2F NPT Fuji Sand Rammer

Part Number: FR-18L-2F NPT
Brand: Fuji Air Tools
Price: Price on request



Product sold in increments specified in the ‘Quantity’ box. This number does not reflect current available inventory.

View Shopping Cart  |  Proceed to Checkout  |

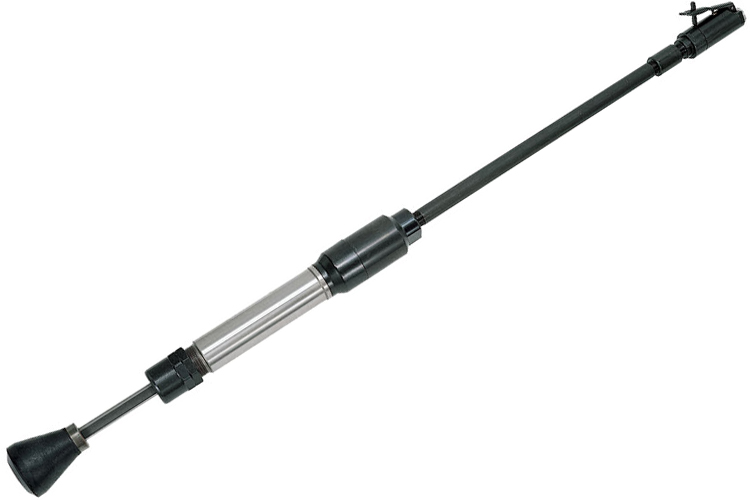

FR-18L-2F NPT Fuji Sand Rammer
FR-18L-2F NPT Fuji Sand Rammer Description

Fuji sand rammers are powerful but light with a stroke range from 50mm to 127mm. Fuji sand rammers are excellent for ramming sand for casting in any ferrous or non-ferrous foundry. Non-rotary type rammers are available for use with irregular shaped butts.

Low air consumption 0.14-0.18 m3/min (due to the valve mechanism) enables Fuji chipping and calking hammers to be used with a smaller compressor. The locking handle are designed to reduce the risk of accidental starting of the tools. The handle is automatically locked when the operator releases the handle.

Technical Specifications
Part Number: 5412053224

Model Type: FR-18L-2F NPT

Throttle Type: Locking Lever (2F)

Blows: 30Hz

Piston Diameter: 18mm/0.709''

Stroke: 50mm/1.97''

Angle Height: 41mm/1 5/8''

Overall Length: 558mm/22''

Weight: 2kg/4.4lbs

Air Consumption(At Load):

0.40m³/min / 14.1ft³/min

Air Hose Size: 9.5mm/3/8''
