FCD-6X-1F N Fuji NPT Corner Drill

Part Number: FCD-6X-1F N
Brand: Fuji Air Tools
Price: Price on request



Product sold in increments specified in the ‘Quantity’ box. This number does not reflect current available inventory.

View Shopping Cart  |  Proceed to Checkout  |

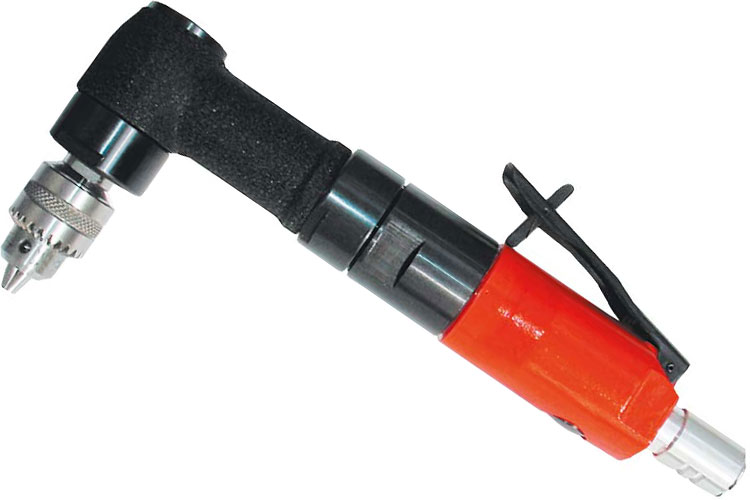

FCD-6X-1F N Fuji NPT Corner Drill
FCD-6X-1F N Fuji NPT Corner Drill Description

Fuji utilizes their power transmission knowledge in their line of Fuji Corner Drills. In addition to their power, these Fuji Corner Drills are designed to work well in confined spaces.

Fuji is a leading Japanese brand in the pneumatic tool industry. Since 1943, Fuji Air Tools have been committed to their customers' productivity worldwide and to provide one of the most extensive ranges of high quality and robust industrial air tools.

Technical Specifications
Part Number: 5412052535

Model Type: FCD-6X-1

Throttle Type: Locking Lever (F)

Drilling Capacity: 6mm/ 1/4''

Stall Torque: 4.9(N.m)/ 3.6(ft/lb)

Free Speed: 2500min-¹

Spindle Thread Size: 3/8-24UNF

Side to Center: 21mm/ 17/20''

Power: 290(W)/ 0.39(hp)

Overall Length: 267mm/ 10.5''

Weight: 1.7kg/ 3.75lb

Max Air Consumption:

0.68m³/min / 24ft³/min

Air Hose Size: 9.5mm/ 3/8''

Products in the same category as the FCD-6X-1F N Fuji NPT Corner Drill

FCD-6X-1 Fuji Standard Corner Drill
FCD-6X-1 Fuji Standard Corner Drill
Price: Price on request
FCD-6X-1 Fuji Standard Corner Drill
FCD-6X-1 Fuji Standard Corner Drill. Part Number: 5412052534 Model: FCD-6X-1 Throttle Type: Lever Drilling Capacity: 6mm/ 1/4'' Stall Torque: 4.9(N.m)/ 3.6(ft/lb) Free Speed: 2500rpm Spindle Thread Size: 3/8-24UNF Side to Center: 21mm/ 17/20''
FCD-6X-1F N Fuji NPT Corner Drill
FCD-6X-1F N Fuji NPT Corner Drill
Price: Price on request
FCD-6X-1F N Fuji NPT Corner Drill
FCD-6X-1F N Fuji NPT Corner Drill. Part Number: 5412052535 Model: FCD-6X-1 Throttle Type: Locking Lever (F) Drilling Capacity: 6mm/ 1/4'' Stall Torque: 4.9(N.m)/ 3.6(ft/lb) Free Speed: 2500rpm Spindle Thread Size: 3/8-24UNF
FCD-6X-1 F Fuji Standard Corner Drill
FCD-6X-1 F Fuji Standard Corner Drill
Price: Price on request
FCD-6X-1 F Fuji Standard Corner Drill
FCD-6X-1 F Fuji Standard Corner Drill. Part Number: 5412052536 Model: FCD-6X-1 Throttle Type: Locking Lever (F) Drilling Capacity: 6mm/ 1/4'' Stall Torque: 4.9(N.m)/ 3.6(ft/lb) Free Speed: 2500rpm Spindle Thread Size: 3/8-24UNF
FCD-6X-2 E Fuji Standard Corner Drill
FCD-6X-2 E Fuji Standard Corner Drill
Price: Price on request
FCD-6X-2 E Fuji Standard Corner Drill
FCD-6X-2 E Fuji Standard Corner Drill. Part Number: 5412052541 Model: FCD-6X-2 Throttle Type: Locking Lever (F) Drilling Capacity: 6mm/ 1/4'' Stall Torque: 7.8(N.m)/ 5.7(ft/lb) Free Speed: 1500rpm Spindle Thread Size: 3/8-24UNF
FCD-10X-1F N Fuji NPT Corner Drill
FCD-10X-1F N Fuji NPT Corner Drill
Price: Price on request
FCD-10X-1F N Fuji NPT Corner Drill
FCD-10X-1F N Fuji NPT Corner Drill. Part Number: 5412052498 Model: FCD-10X-1 Throttle Type: Locking Lever (F) Drilling Capacity: 10mm/ 7/16'' Stall Torque: 11.8(N.m)/ 8.6(ft.lb) Free Speed: 1200rpm Spindle Thread Size: 1/2-20UNF

Do you have questions about the FCD-6X-1F N Fuji NPT Corner Drill? Contact MRO Tools: 1.800.888.4005

The FCD-6X-1F N Fuji NPT Corner Drill is one of thousands of quality tooling products available from MRO Tools. Please browse Fuji Corner Drills for tools similar to the FCD-6X-1F N Fuji NPT Corner Drill.

FCD-6X-1F N Fuji NPT Corner Drill description summary: FCD-6X-1F N Fuji NPT Corner Drill. Part Number: 5412052535 Model: FCD-6X-1 Throttle Type: Locking Lever (F) Drilling Capacity: 6mm/ 1/4'' Stall Torque: 4.9(N.m)/ 3.6(ft/lb) Free Speed: 2500rpm Spindle Thread Size: 3/8-24UNF Quantity discounts may be available for the FCD-6X-1F N Fuji NPT Corner Drill. Please contact MRO Tools for details.
