076659 Mountz FG-125i IFR Preset Torque Screwdriver w/ Red Label

Part Number: 076659
Brand: Mountz Torque Tools
Price: $424.86


* denotes required field

Add Calibration Service — $45.00*
Preset Value (If adding service)
Torque Unit Selection
Add Calibration Certificate — $0.00*
Certificate Time Interval if Adding Certificate

Product sold in increments specified in the ‘Quantity’ box. This number does not reflect current available inventory.

View Shopping Cart  |  Proceed to Checkout  |

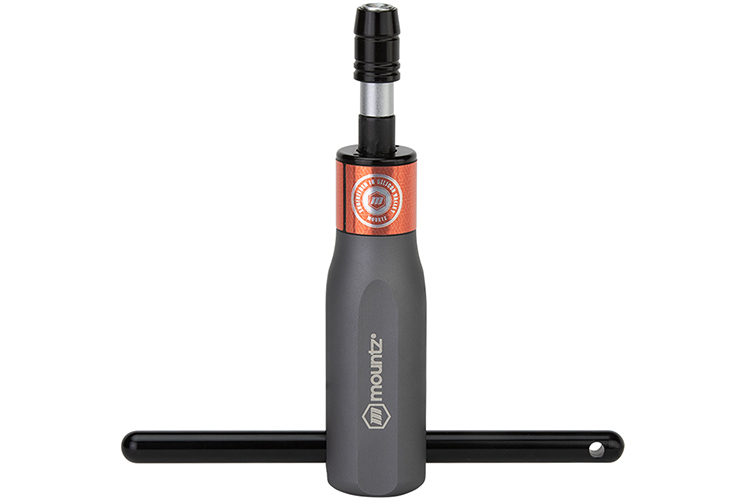

076659 Mountz FG-125i IFR Preset Torque Screwdriver w/ Red Label
076659 Mountz FG-125i IFR Preset Torque Screwdriver w/ Red Label Description

The 076659 Mountz FG-125i IFR Preset Torque Screwdriver w/ Red Label is a precision tool designed to ensure error-proofing in your assembly processes. This torque screwdriver features a cam-over mechanism, engineered to prevent over-torque, guaranteeing the utmost precision in your fastening applications. What sets it apart is the IFR (Impact Free Resetting) cam, which eliminates any slight reaction during the screwdriver's resetting phase, making it perfect for assembling even the most shock-sensitive components.

Ideal for tasks where parts need to be consistently assembled at the same torque setting, this preset hand torque screwdriver simplifies your workflow. It empowers operators of all skill levels to confidently deliver the correct torque every time, serving as a reliable quality control tool.

The Mountz 076659 FG-125i IFR Preset Torque Screwdriver is factory-set to the required torque value for your specific application. Unlike adjustable torque screwdrivers, it doesn't have an external adjustment scale. Instead, it features an internal adjustment mechanism, allowing you to precisely set the torque value using a hex key and a torque tester. And in cases where your torque requirements change or a new project demands a different torque setting, this screwdriver remains flexible. You can easily reset the torque value internally using a torque analyzer.

Rest assured that this tool falls within the preferred and certified torque ranges, complying with ISO 6789 requirements (+/- 6% of indicated setting). With the 076659 Mountz FG-125i IFR Preset Torque Screwdriver w/ Red Label, you have the precision, reliability, and flexibility needed to excel in your assembly tasks, ensuring consistent quality and error-proof results every time.

Technical Specifications
Part Number: 076659

Model: FG-125i IFR

Drive Size: 1/4'' F/Hex

American: 25 - 125 lbf.in

S.I.: 2.8 - 14.1 N.m

Tool Weight: 11.5oz

Tool Length: 6.3''

Label Color: Red
