02011014 Stahlwille 45aSP 7/16'' SAE Spline-Drive Socket, 3/8'' Square Drive
Part Number: 02011014
Product sold in increments specified in the ‘Quantity’ box. This number does not reflect current available inventory.
View Shopping Cart | Proceed to Checkout |
|
|

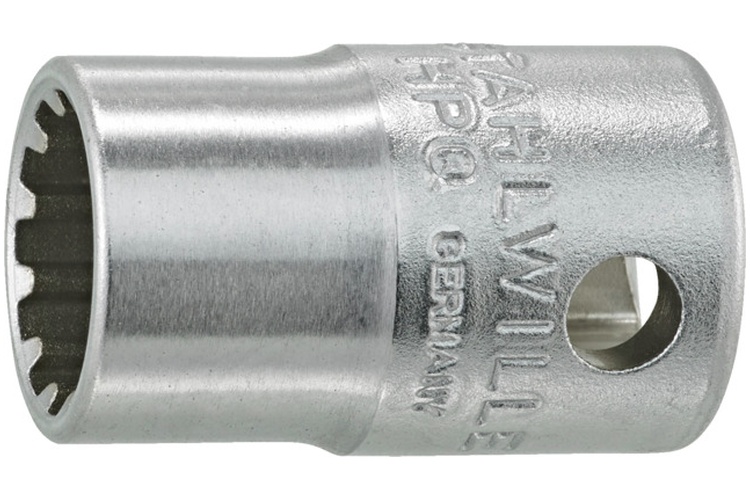

02011014 Stahlwille 45aSP 7/16'' SAE Spline-Drive Socket, 3/8'' Square Drive DescriptionThe 02011014 Stahlwille 45aSP 7/16'' SAE Spline-Drive Socket, 3/8'' Square Drive provides a dedicated 3/8'' drive solution for professional service applications using external Spline-Drive screws. Its 7/16'' working size corresponds to Stahlwille Spline-Drive profile size 14, while the 3/8'' internal square drive connects to compatible ratchets, handles, and torque tools. The 02011014 Stahlwille 45aSP 7/16'' SAE Spline-Drive Socket, 3/8'' Square Drive measures 28mm in overall length, with a socket-end outside diameter of 16mm and a drive-end outside diameter of 17.3mm. It has a bore diameter of 10.4mm, a broach depth of 11mm, and a socket depth of 14.5mm. This 7/16'' version has a listed weight of 37g. Stahlwille manufactures the Model 45aSP socket from HPQ® high-performance steel with a chrome-plated finish. Stahlwille describes HPQ® tools as wear-resistant, thin-walled, lightweight, and capable of withstanding high torques, making them well suited for work in confined spaces such as turbines. The series is specified to MS-33787 / MIL-W-8982. Well suited for technicians working with specialized external Spline-Drive fasteners, the 02011014 Stahlwille 45aSP 7/16'' SAE Spline-Drive Socket, 3/8'' Square Drive combines a dedicated Spline-Drive working profile, 3/8'' square-drive compatibility, and HPQ® high-performance steel construction for dependable professional use. Technical SpecificationsPart Number: 02011014
Brand: Stahlwille
Model: 45aSP
Socket Opening: 7/16''
Size Drive Profile: 14
Overall Length: 28mm
Square Drive: 3/8''
Drive Profile: Spline-Drive
Nose End Diameter: 16mm
Drive End Diameter: 17.3mm
Bore Diameter: 10.4mm
Broach Depth: 11mm
Socket Depth: 14.5mm
Weight: 37g
|
