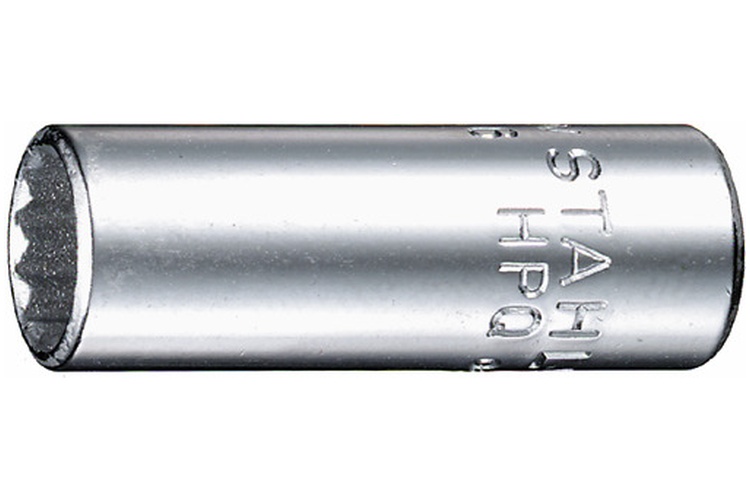

01650016 Stahlwille 40aDV 1/4'' SAE 12-Point Socket, 1/4'' Square Drive

01650016 Stahlwille 40aDV 1/4'' SAE 12-Point Socket, 1/4'' Square Drive Description

The 01650016 Stahlwille 40aDV 1/4'' SAE 12-Point Socket, 1/4'' Square Drive provides a compact SAE socket solution for professional service, maintenance, and assembly work with fractional-inch fasteners. Its 1/4'' bi-hex working profile uses Stahlwille's AS-Drive design, helping transmit force through the fastener flats rather than concentrating load at the corners.

The 01650016 Stahlwille 40aDV 1/4'' SAE 12-Point Socket, 1/4'' Square Drive uses a 1/4'' internal square drive and measures 31.8mm in overall length. Variant-specific dimensions include a 9.4mm socket-end outside diameter, 10.7mm drive-end outside diameter, 5.2mm bore diameter, 6mm broach depth, and 23.8mm socket depth.

Stahlwille manufactures the 40aDV series from HPQ® high-performance steel, a wear-resistant material that supports high torque while allowing thin-wall, lightweight construction for work in confined spaces. The socket is chrome-plated and conforms to SAE AS 954-E / S.B.A.C. AS 40605/40606 requirements. This 1/4'' version has a listed weight of 13g.

Well suited for service and maintenance work where space is limited and dependable fastener engagement matters, the 01650016 Stahlwille 40aDV 1/4'' SAE 12-Point Socket, 1/4'' Square Drive combines a 12-point AS-Drive profile, HPQ® steel construction, a chrome-plated finish, and precise 1/4'' sizing for professional maintenance, service, and assembly applications.
