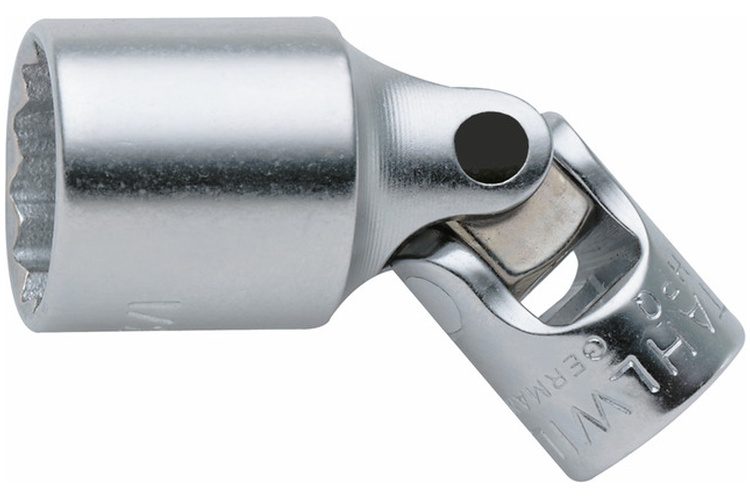

01540028 Stahlwille 402a 7/16'' SAE 12-Point Uniflex Socket, 1/4'' Square Drive

01540028 Stahlwille 402a 7/16'' SAE 12-Point Uniflex Socket, 1/4'' Square Drive Description

The 01540028 Stahlwille 402a 7/16'' SAE 12-Point Uniflex Socket, 1/4'' Square Drive provides a compact Uniflex solution for professional fastening tasks where straight-line socket access may be limited. Its 7/16'' SAE bi-hex AS-Drive profile provides 12-point engagement, while the 1/4'' internal square drive fits compatible ratchets, handles, and torque tools.

The 01540028 Stahlwille 402a 7/16'' SAE 12-Point Uniflex Socket, 1/4'' Square Drive measures 39.5mm in overall length, with a socket-end outside diameter of 15.7mm and a drive-end outside diameter of 12.7mm. It has a bore diameter of 10.5mm, a broach depth of 10.7mm, and a socket depth of 15mm. This 7/16'' version has a listed weight of 23 g.

Stahlwille manufactures the Model 402a Uniflex socket from HPQ® high-performance steel with a chrome-plated finish. Stahlwille describes HPQ® tools as wear-resistant, thin-walled, lightweight, and capable of withstanding high torques, making them well-suited to confined working areas. The series is specified to SAE AS 954-E and ASME B 107.1.

Well suited for technicians who need flexible access around surrounding components, the 01540028 Stahlwille 402a 7/16'' SAE 12-Point Uniflex Socket, 1/4'' Square Drive combines a 7/16'' SAE 12-point AS-Drive profile, 1/4'' square-drive compatibility, HPQ® high-performance steel construction, and the access advantages of the Uniflex format.
