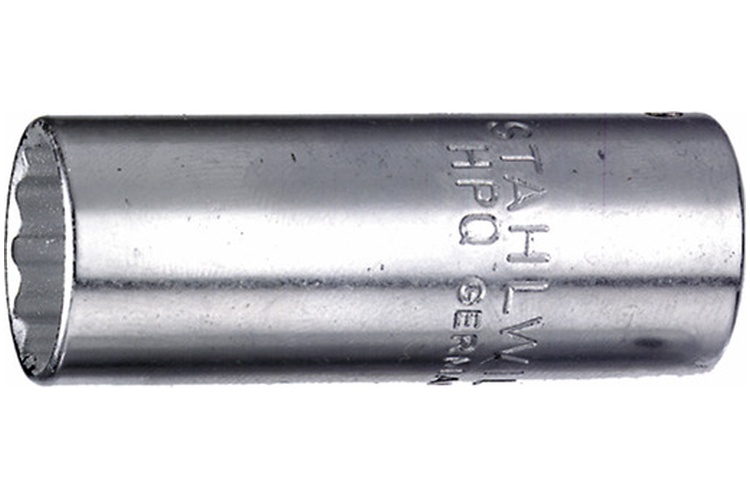

01240010 Stahlwille 40DL 10mm Long 12-Point Socket, 1/4'' Square Drive

01240010 Stahlwille 40DL 10mm Long 12-Point Socket, 1/4'' Square Drive Description

The 01240010 Stahlwille 40DL 10mm Long 12-Point Socket, 1/4'' Square Drive provides extended reach for professional service, maintenance, and assembly work involving recessed or otherwise difficult-to-access metric fasteners. Its 10mm bi-hex profile uses Stahlwille's AS-Drive design, which is intended to transmit force through the fastener flats rather than concentrating load at the corners.

The 01240010 Stahlwille 40DL 10mm Long 12-Point Socket, 1/4'' Square Drive measures 50mm in overall length and uses a 1/4'' internal square drive. Variant-specific dimensions include a 14.3mm socket-end outside diameter, 14.3mm drive-end outside diameter, 9mm bore diameter, 9mm broach depth, and 41.9mm socket depth.

Stahlwille manufactures the 40DL series from HPQ® high-performance steel, a wear-resistant material designed to support high torque while allowing thin-wall, lightweight construction. The socket is chrome-plated and conforms to DIN EN 3710, DIN EN 3709, DIN 3124, ISO 2725-1, and ASME B 107.5M. This 10mm version has a listed weight of 35 g.

A strong choice for professionals who need added reach without giving up a compact 1/4'' drive format, the 01240010 Stahlwille 40DL 10mm Long 12-Point Socket, 1/4'' Square Drive combines a long 50mm body, 12-point AS-Drive profile, HPQ® steel construction, and precise metric sizing for professional maintenance, assembly, and repair applications.
