01011008 Stahlwille 40aSP 1/4'' SAE Spline-Drive Socket, 1/4'' Square Drive

Part Number: 01011008
Brand: Stahlwille Tools
Price: $45.34



Product sold in increments specified in the ‘Quantity’ box. This number does not reflect current available inventory.

View Shopping Cart  |  Proceed to Checkout  |

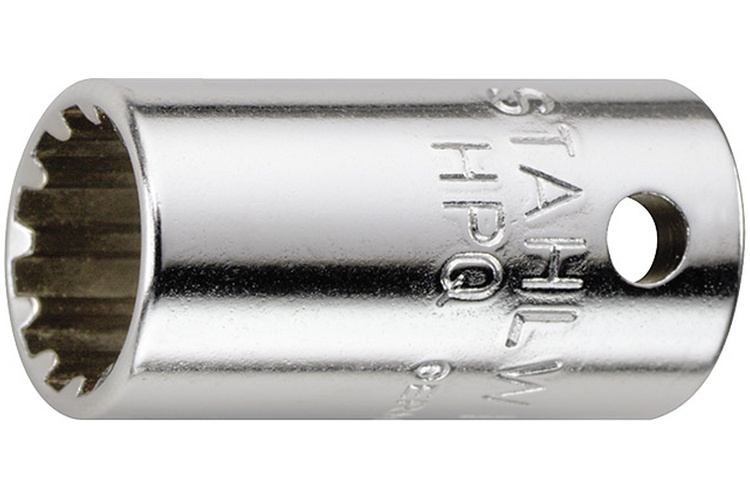

01011008 Stahlwille 40aSP 1/4'' SAE Spline-Drive Socket, 1/4'' Square Drive
01011008 Stahlwille 40aSP 1/4'' SAE Spline-Drive Socket, 1/4'' Square Drive Description

The 01011008 Stahlwille 40aSP 1/4'' SAE Spline-Drive Socket, 1/4'' Square Drive provides a compact 1/4'' drive solution for professional service applications using external Spline-Drive screws. Its 1/4'' working size corresponds to Stahlwille's Spline-Drive profile size 8, while the 1/4'' internal square drive connects to compatible ratchets, handles, and torque tools.

The 01011008 Stahlwille 40aSP 1/4'' SAE Spline-Drive Socket, 1/4'' Square Drive measures 22.2mm in overall length, with a socket-end outside diameter of 9.5mm and a drive-end outside diameter of 10.7mm. It has a bore diameter of 5.6mm, a broach depth of 7mm, and a socket depth of 14.2mm. This 1/4'' version has a listed weight of 10g.

Stahlwille manufactures the Model 40aSP socket from HPQ® high-performance steel with a chrome-plated finish. Stahlwille describes HPQ® tools as wear-resistant, thin-walled, lightweight, and capable of withstanding high torques, making them well suited for work in confined spaces such as turbines. The series is specified to MS-33787 / MIL-W-8982.

Well suited for technicians working with specialized external Spline-Drive fasteners, the 01011008 Stahlwille 40aSP 1/4'' SAE Spline-Drive Socket, 1/4'' Square Drive combines a dedicated Spline-Drive working profile, compact 1/4'' square-drive compatibility, and HPQ® high-performance steel construction for dependable professional use.

Technical Specifications
Part Number: 01011008

Brand: Stahlwille

Model: 40aSP

Socket Opening: 1/4''

Size Drive Profile: 8

Overall Length: 22.2mm

Square Drive: 1/4''

Drive Profile: Spline-Drive

Nose End Diameter: 9.5mm

Drive End Diameter: 10.7mm

Bore Diameter: 5.6mm

Broach Depth: 7mm

Socket Depth: 14.2mm

Weight: 10g
